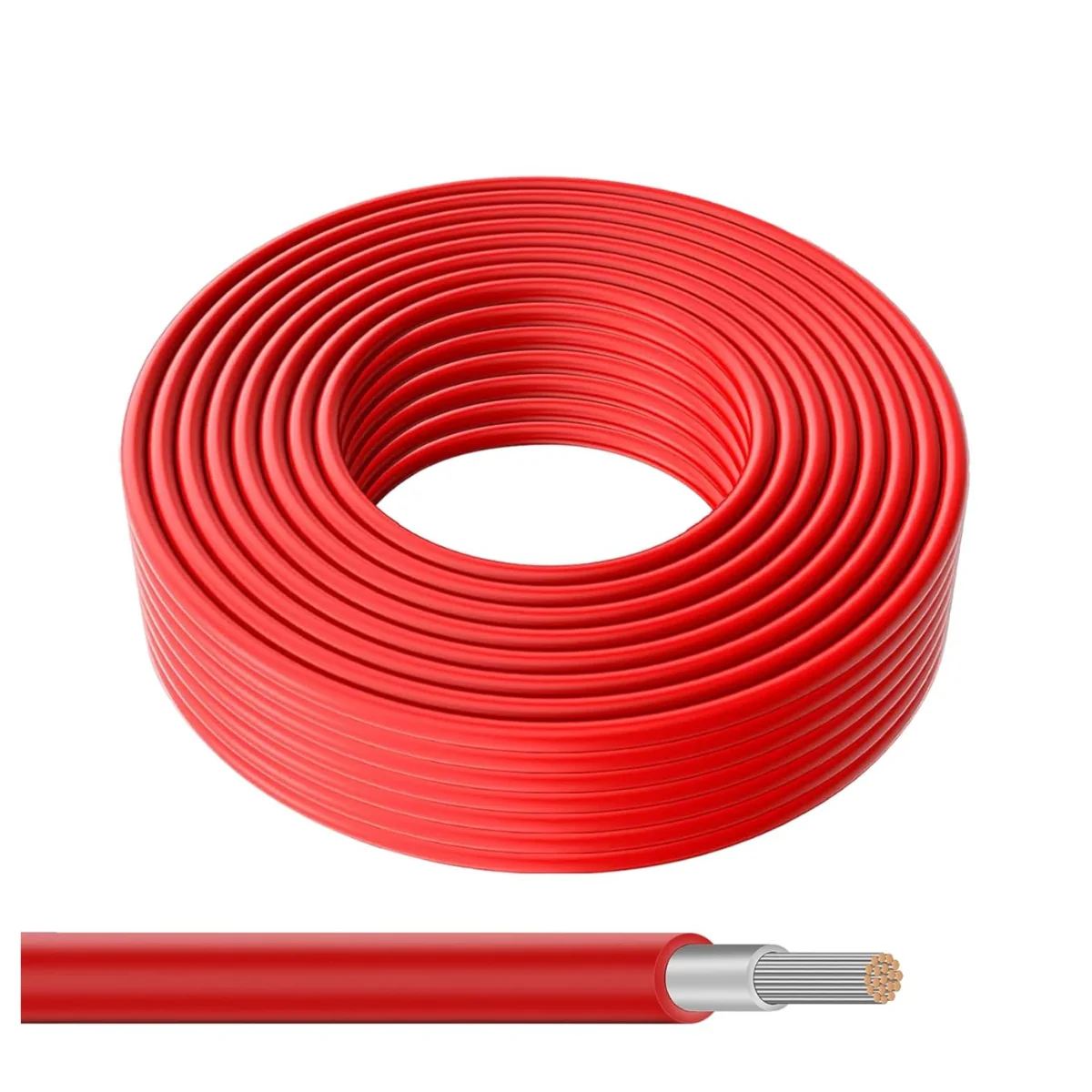

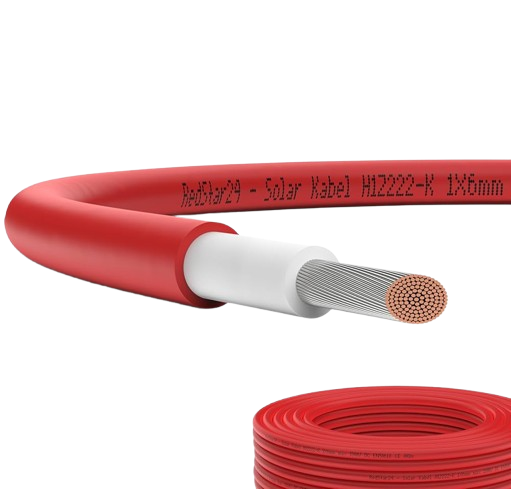

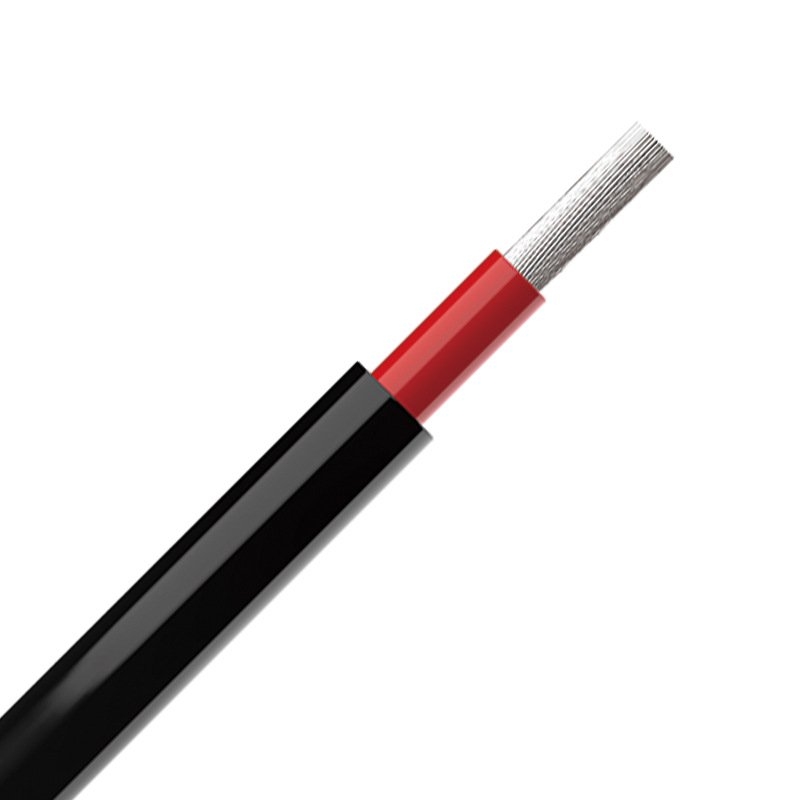

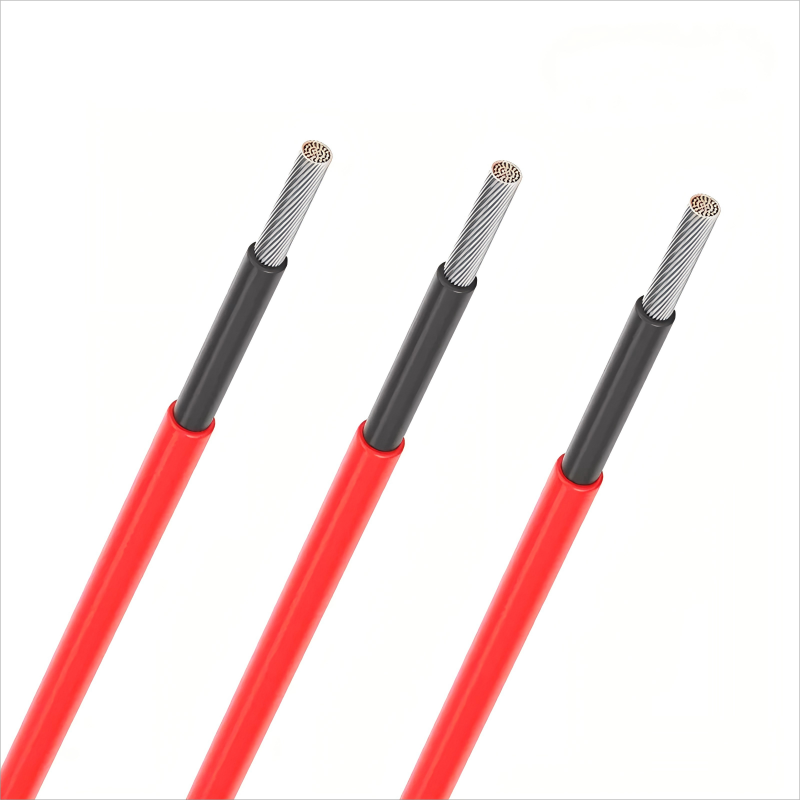

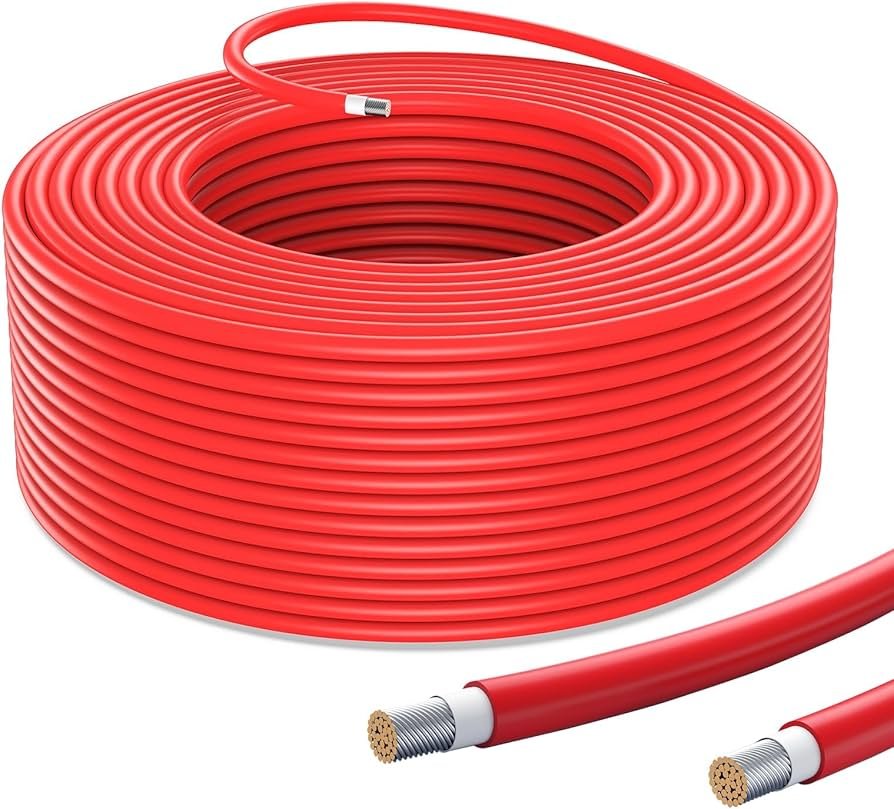

which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.

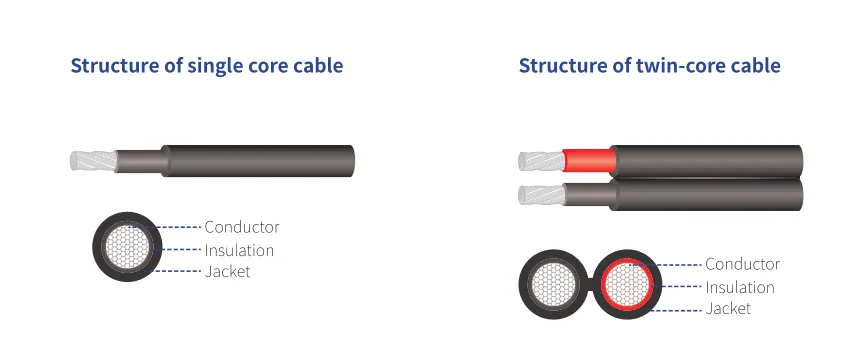

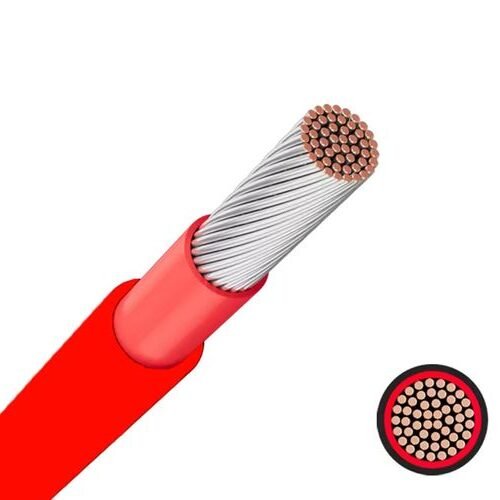

Conductor: Bare Copper or Tinned copper, ASTM B33,ASTM B172
Insulation: Low smoke, halogen-free, flame retardant irradiated XLPE
Outer sheath: Low smoke, halogen-free, flame retardant irradiated XLPE

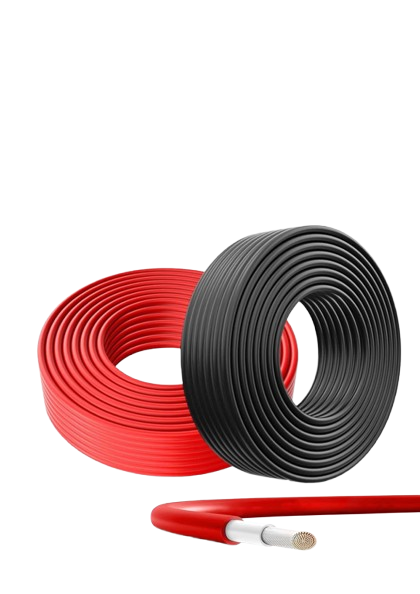

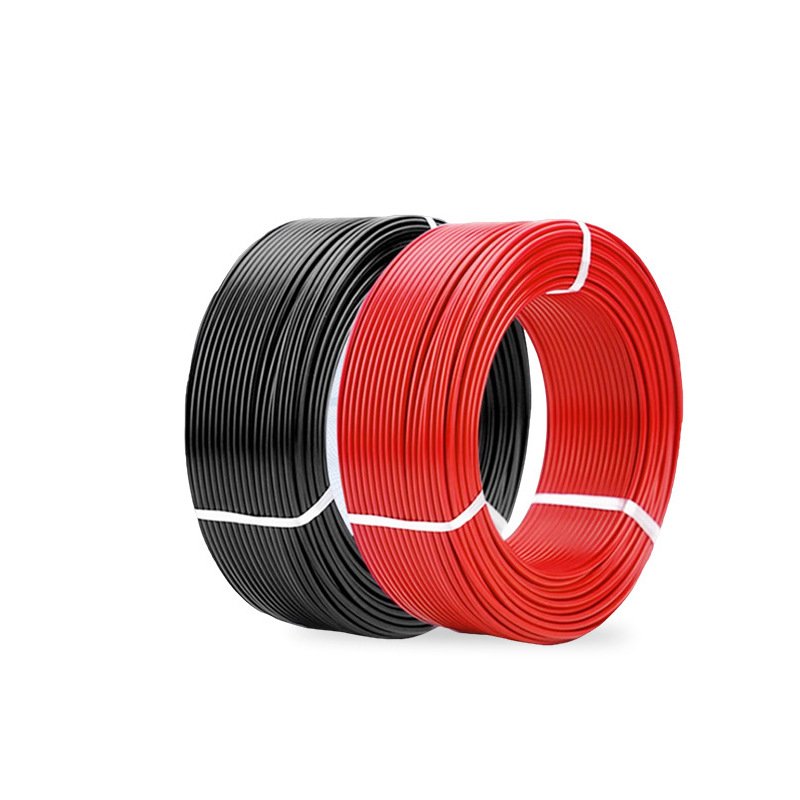

color:Black/red
| Rated voltage | AC=600V,1000V,2000V |
| Test voltage | 6000V |
| Operating temperature | -40℃~125℃ |
| Short circuit temperature | 280℃ 5s |
| Bending radius | D＜8mm 4D; D≥8mm 6D |
| Service life | ≥25 Years |
| Standard | UL1581,UL854,UL2556,UL4703 |
| Certification | UL |

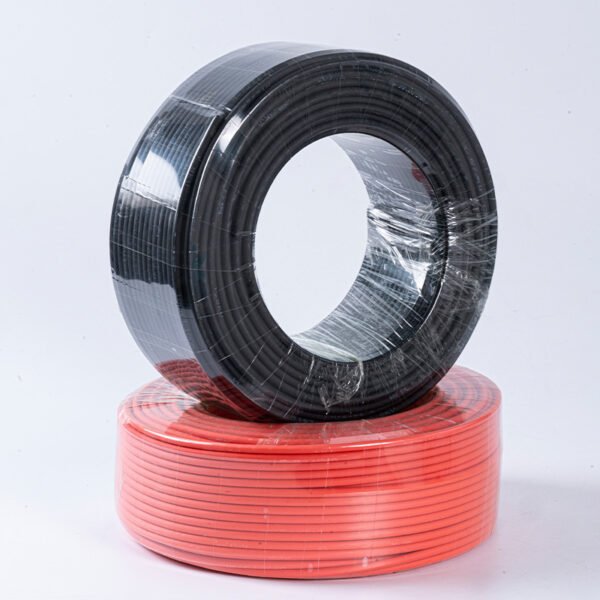

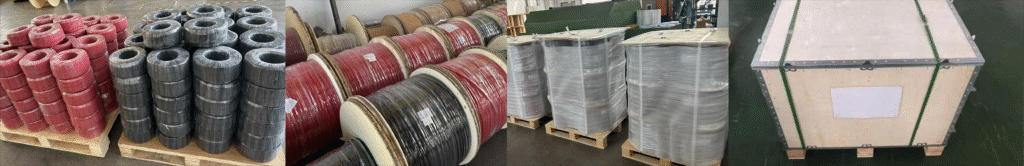

| packing | 100m, 200m, 500m, 1000m, 3000m rolls,According to customer requirements. |
|
Specification |
Conductor Construction | 600V Outer diameter | 1000V&2000V Outer diameter |
Maximum resistance |
|
AWG |
N/mm | mm | mm |
Ω/Km |
|
18AWG |
16/0.25 | 4.25 | 5.0 | 23.2 |
| 16AWG | 25/0.25 | 4.55 | 5.3 |
14.6 |
|
14AWG |
41/0.25 | 4.95 | 5.7 | 8.96 |
|
12AWG |
65/0.25 | 5.40 | 6.2 | 5.64 |
|
10AWG |
105/0.25 | 6.20 | 6.9 | 3.55 |
|
8AWG |
168/0.25 | 7.90 | 8.4 |
2.23 |
| 6AWG | 266/0.25 | 9.80 | 10.3 |
1.4 |
| 4AWG | 420/0.25 | 11.7 | 11.7 |
0.88 |
| 2AWG | 665/0.25 | 13.3 | 13.4 |
0.55 |
|
1AWG |
836/0.25 | 15.2 | 16.1 | 0.44 |
|
1/0AWG |
1045/0.25 | 17.0 | 17.1 | 0.35 |
|
2/0AWG |
1330/0.25 | 18.3 | 18.8 |
0.28 |
| 3/0AWG | 1672/0.25 | 19.8 | 20.4 |
0.22 |
| 4/0AWG | 2109/0.25 | 21.5 | 22.1 |
0.17 |
